Testing Equipment

Carbon fiber composite materials
No. Device Name Picture Index Use
1 Electronic universal testing machine

Maximum tension: 2000KN
Compression spacing: 1000mm
Pillar spacing: 700mm
Piston stroke: 250mm
Sample diameter: 70mm


Mechanical properties of stretching, bending, compressive strength test
2 Heat aging box

Temperature: -70 ~ 150 ℃
Humidity: 20% ~ 98% RH


High and low temperature heat aging performance test
3 UV aging box

Temperature: 10 ~ 70 ℃
Humidity: 95% RH
UV wavelengths:
280nm ~ 400nm
Irradiance range:
<50w / m


UV aging tests

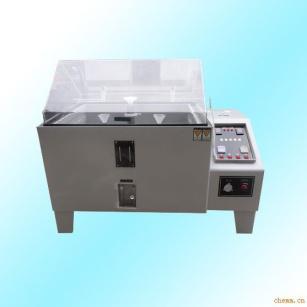

4 Salt spray aging test machine

Test temperature: <63 ℃
Spray volume: 1-2ml / 80cm2 / h
Humidity: ≥85% RH
Capacity: 108L
Salt bucket capacity: 15L


Anti-aging properties of salt spray corrosion test
5 High temperature chamber

Maximum temperature: 500 ℃
Within the box size:
500 × 500 × 600mm
Temperature accuracy: ± 1.0 ℃
Distribution uniformity: ± 2.5%


High Temperature Performance Test
6 Resistance Tester

Resistance: 103-1012 Ohm
Relative humidity: 10-90% RH
Temperature: 0-37.8 ℃


Resistance Test

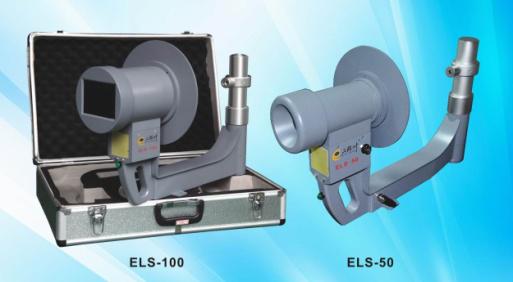

7 X-ray nondestructive testing

Field: 100mm
Resolution: 36Ip / cm;
Tube voltage: 60-75kv
Contrast: 5%


NDT

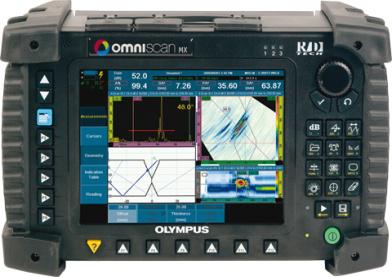

8 Ultrasonic flaw detector

Detection range: 0.1-8000mm
Velocity range:
1 ~ 99999m / s
Operating frequency: 0.1-40MHz
Pulse shift:
0 ~ 3000mm


NDT
9 Rockwell hardness

Digital
Preliminary test force: 10Kg
Test Force: 60kg
Holding Time: 0-60S
Specimen height: 170mm


Hardness Testing
10 Universal friction and wear tester

Test force: 10-1000N
The maximum frictional torque: 2.5Nm
Spindle speed: 2000r / min
Sample temperature: 260 ℃


Friction and wear properties
11 Electro-hydraulic servo fatigue testing machine

Maximum load: ± 1000KN
Test frequency: 0.01-50HZ
Test waveforms: sine, triangle, square, ramp, trapezoidal wave
Actuator piston stroke: ± 75mm
Stretching space: 900mm


Dynamic and static mechanical properties
12 Rotating bending fatigue testing machine

Runout: ≤0.01mm
Load running runout: ≤0.05mm


Bending fatigue test
13 High-frequency fatigue testing machine

Maximum load: 500KN
The maximum dynamic amplitude: ± 250KN
Test frequency: 50-250HZ
Experimental Space:
600 × 600mm


Fatigue characteristics of the sample under tension and compression and alternating flowers and the sine wave
14 Electronic high-temperature creep rupture strength testing machine

Maximum load: 100KN
Test force range: 0.4-100% FS
Temperature: 200-1000 ℃
All tropical long: ≥150mm


High temperature creep relaxation tests
15 Drop hammer impact test machine

Maximum impact energy: 30000J
Main hammer Weight: 590 kg
Impact Height: 2.8m
Impact speed: 7.4m / s
Hammer Blade hardness: HRC58-62
Anvil hardness: HRC58-62


Impact Performance Test

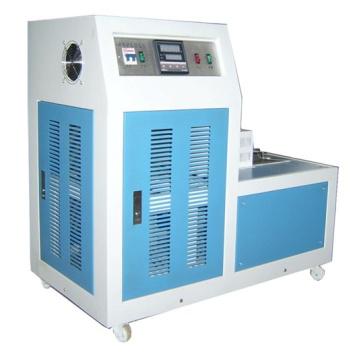

16 Low temperature impact test instrument

Temperature range: 30 ~ -60 ℃
Workspace:
120 × 120 × 70mm
Cooling rate: 1 ℃ / min


17 Thermal Mechanical Analyzer

temperature range:
-170 ℃ ~ 600 ℃
Heating rate:
0.01 ~ 20 K / min
Frequency Range:
0.01 ~ 100 Hz
The most vigorously range: 24N


Thermo-mechanical properties of materials
18 Dynamic Mechanical Analyzer

Frequency Range:
0.01-100 Hz
Amplitude range:
± 0.1 up-240 μm
temperature range:
-170 ~ 600 ℃
Heating rate:
0.01-20 K / min


Tg test material
19 Laser thermal conductivity meter

temperature range:
RT ~ 300 ℃
Thermal diffusivity measuring range: 0.01 ~ 1000mm2 / s
Thermal conductivity measurement range:
0.1 ~ 2000 W / mK


Thermal diffusivity, thermal conductivity measurement
20 Dilatometer

temperature range:
RT ~ 1000 ℃
Heating rate: 0 ~ 50K / s
The maximum sample length: 50mm
Maximum sample thickness: 12mm


Linear expansion coefficient measurement
21 Differential Scanning Calorimetry

temperature range:
-170 ~ + 600 ℃
Heating rate range:
0-100 K / min


Thermal performance
22 TGA

Resolution: 0.1 g
Ambience:
Static, dynamic, vacuum
Temperature range: 20-1100 ℃
Heating rate: 0.001-200K / min


Thermal performance
23 Microscopic infrared absorption spectrometer

MCT single point detector: ≥7800-600cm-11
DTGS single point detector: ≥7600-450cm-11
Spatial resolution:
<10μm
Under ATR mode ≤3μm


Particle and fiber analysis
24 Rotary flow analyzer

Frequency Range:
10-5 Hz - 100 Hz
Maximum speed: 1500 rpm
Maximum torque: 200 mNm
Temperature range: -100 ℃


Rheological performance analysis
25 Elemental analyzer

Measuring range：

C：0.03~20mg；

H：0.03~3mg；

N：0.03~2mg；

 S：0.03~6mg；

O：0.03~2mg

Content measurement sample CHNSO

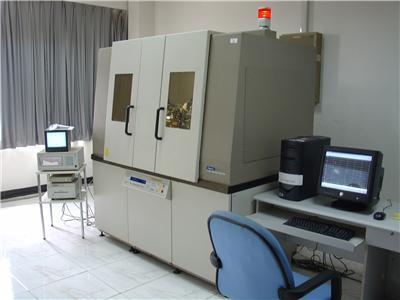

26 Liquid X-ray diffractometer

High voltage stability: 0.005%
Rotatably: θ / θ mode and 2θ mode


Microscopic observation
27 Nuclear magnetic resonance spectrometer

Time resolution: 12.5ns
Minimum Event Time: 25ns
Highest phase resolution: 0.0055 °
The highest frequency resolution: 0.005 Hz
H SNR: ≧ 300


Structural analysis of organic compounds
28 Fiber tensile tester

Load Range: 0 ~ 200 cN
Load measurement resolution: 0.01 cN
Elongation measuring range: 100mm;
Extension Resolution: 0.1%


Fiber strength, elongation test
Carbon fiber properties
No. Device Name Picture Index Use
1 Composite Interface Tester

Experiment Temperature: RT ~ 400 ℃
Load cell:
0 ~ 5000mN
Cited pull speed: 0.12mm / min


Interfacial strength between the fibers, the contact angle, the fiber tensile strength
2 Field emission scanning electron microscopy

Magnification: 10-650000 X
Resolution: 1.2nm
Sample size: 100mm Diameter


Microscopic surface morphology
3 Infrared Spectrometer

Wave number range: 7800 ~ 350cm-1
Resolution: 0.5cm-1
N: 40000: 1


Structural Analysis

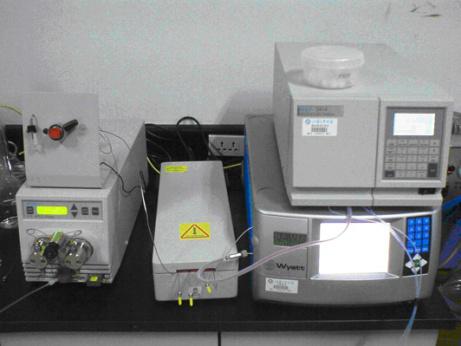

4 Gel Permeation Chromatography
5 Fineness instrument

Refractive Index range: 1.00-1.75 RIU
Measuring range:
5x10-4 ~ 7x10-9 RIU
Flow rate 0.1-10ml / min


Molecular weight and distribution, aggregation morphology and molecular size of the polymer and aggregates, refractive index, etc.
6 Ultramicrotome

Precision slice thickness adjustable range 1nm ~ 15μm

Samples sliced
7 XPS Spectrometer

Sensitivity: 16,000,000 cps
Energy resolution: <0.48eV
Minimum Analysis Area: 30μm
AES Sensitivity: 500,000 cps
AES energy resolution: <0.4 dE / E


Chemical valence information elements, depth distribution, line scan, area scan analysis
8 ICP Spectrometer

Element detection limit:
3σ≤0.005mg / l
Line Resolution: 0.007nm
Wavelength indication error:
≤ ± 0.05nm
Wavelength repeatability:
≤ ± 0.01nm


Trace elements qualitative and quantitative analysis
9 Visible Spectrophotometer

Wavelength range: 320-1100nm
Spectral Bandwidth: 2nm
Photometric Accuracy:
± 0.2% T
Stray light ≤0.05% T:


Liquid absorbance, transmittance, the concentration of the test

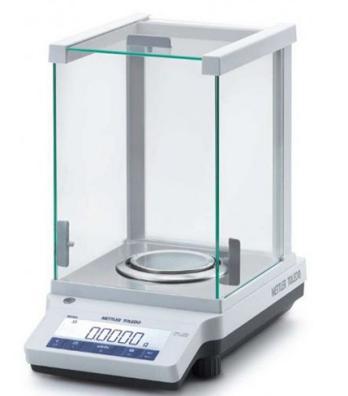

10 Electronic analytical balance

Maximum weight value: 120g

Pan Dimensions: ?90mm

Readability: 0.1mg

Repeatability: 0.1mg

Linearity error: 2s

Samples weighing
